How to Make an Animation using Chimera

Tom Goddard
August 27, 2012
Bay Area cryoEM Meeting, Santa Cruz

Show how to create an animation to show a morph between two conformations of a ParM filament, morphing both the EM maps and fit molecular models. Use EMDB maps 5128, 5129 and PDB models 1mwm, 1mwk in ADP bound and unbound states.

Map Morph

computer generated image
  • Align maps 5128 and 5129.
  • Requires flipping one map end-to-end.
  • Use Fit in Map dialog.
  • Use Morph Map dialog to morph.
  • Grids of two maps must align.
  • vop resample #1 ongrid #0
  • Morph Map dialog Play.
  • Resize graphics window and Record.
  • windowsize 384 512
  • Playback in a movie player.
  • Use player loop option.
  • Make it slower by adding more frames.
  • Morph Map Options, step 0.02 gives 51 frames.
  • Record movie and playback.

Molecule Morph

computer generated image
  • Fetch 1mwm and 1mwk
  • Delete B chains.
  • Select / Chain / B, Actions / Atoms / Delete
  • Sequence based structure alignment.
  • MatchMaker dialog, match #5 to #4.
  • Note ADP ligand in 1mwm.
  • Morph Conformations dialog.
  • Add 1mwm, 1mwk and 1mwm to return to start, Create.
  • Play morph.
  • Simple domain motion.
  • Show ADP ligand.
  • Show 1mwm, select and hide ribbon.
  • Select ADP, Actions / Atom / show only.
  • Show as spheres.
  • Record movie. MD Movie File / Record.

Combined Map and Molecule Morph

computer generated image computer generated image
  • Use commands to morph map and molecule at same time.
  • Fit 1mwm in emd 5128, ADP bound
  • Fit 1mwk in emd 5129, unbound
  • Play molecule and map morphs with commands

    coordset #6 1,100

    vop morph #0,2 start 0 playstep 0.01 frames 100 model #3

  • Run both commands separated by a semicolon.
  • Use command file movie1.cmd for movie recording.

    movie record
    coordset #6 1,100 ; vop morph #0,2 ...
    wait 100
    movie encode ~/Desktop/morph.mp4 roundtrip true

  • Use movie2.cmd with "movie record" after morph
    commands assure first frame of movie is at start of morph.
  • Show animation command examples web page.

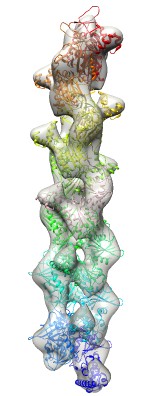

Symmetric Molecule Morph

computer generated image
  • Create molecule symmetric copies.
  • Find map symmetry
    measure symmetry #0 helix 20,180,opt min .95
    gives rise per subunit 24.18 Angstroms,
    angle per subunit 165.3 degrees,
    center grid point 50,50,94
  • Make symmetric copies
    sym #6 group h,24.2,165.3,12,-6 coord #0
  • Color copies
    rainbow model #7 ; color pink #6
  • Display as spheres, no ribbon
    display #6,7 ; repr sphere #6,7 ; ~ribbon #6,7
  • Morphing original molecule does not update symmetric copies.
  • Update copies symmetric with
    mcopy #6 #7 set x.
  • Enable shadows.
  • Record movie with movie3.cmd
  • To update coordinates on every movie frame
    perframe "mcopy #6 #7 set x" frames 100
  • Recording takes a few minutes.
  • Large size movie

Symmetric Morph Movie - Large Size
