Bad ligand chemistry in AlphaFold, OpenFold and Boltz predictions

Tom Goddard and Tristan Croll
February 25, 2026

Predicting ligand binding

Structure prediction programs AlphaFold 3, OpenFold 3 and Boltz 2 appear to have little understanding of ligand chemistry, frequently predicting conformations that do not match the bond order and chirality of the input ligands. Predicted conformations would have different hydrogens and binding properties. These errors are numerous (> 50% of ligands) and likely significantly degrade the quality of ligand binding predictions.

Predictions have wrong ligand chemistry

AlphaFold 3 does not appear to understand single versus double bonds, for instance predicting a tetraheral cyclohexane ring of 6 carbons as a planar benzene ring. The predicted conformation is a different molecule with different hydrogens. Binding predictions won't be accurate if AlphaFold 3 does not understand how many hydrogens are bonded.

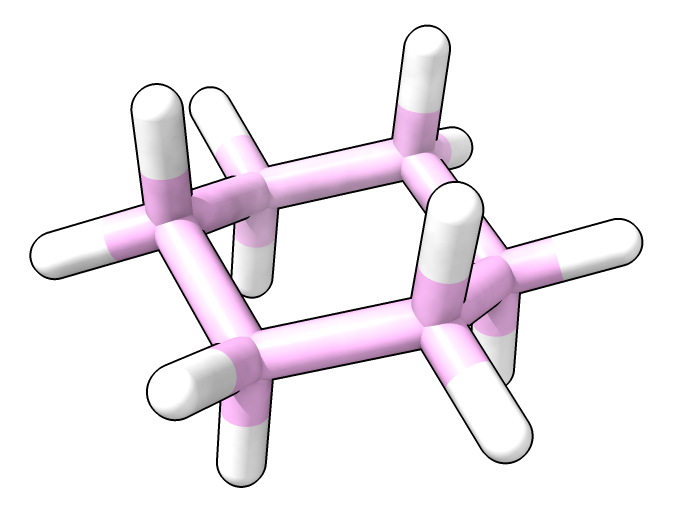

Cyclohexane (PubChem 8078).

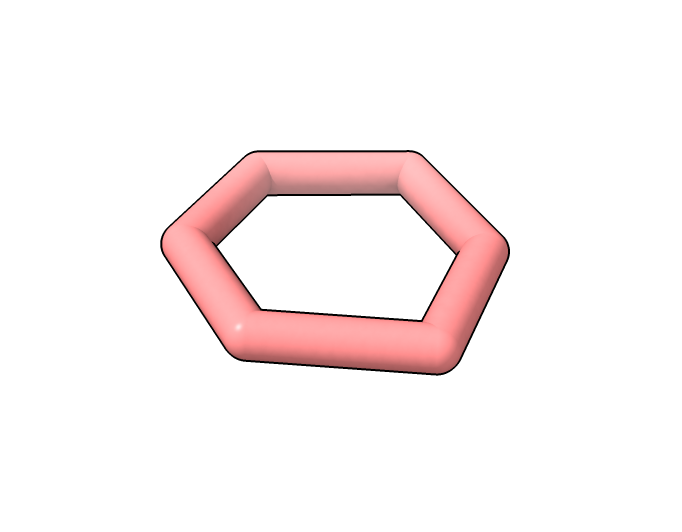

Cyclohexane predicted by AlphaFold 3 comes out as benzene (planar).

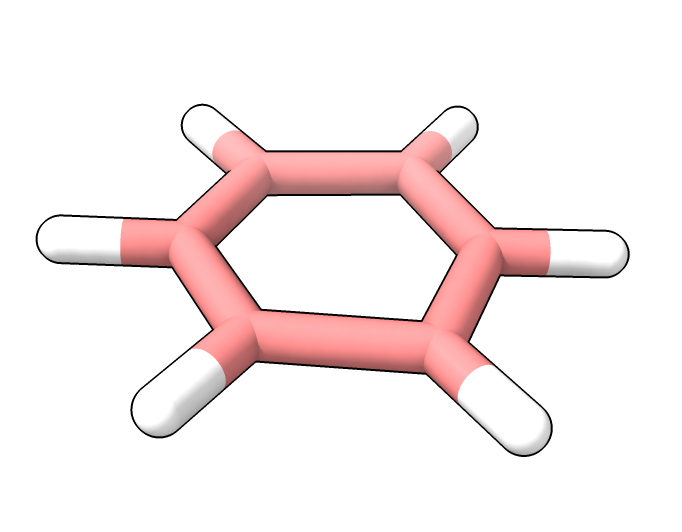

AlphaFold 3 prediction with hydrogens added by ChimeraX based on conformation.

More wrong chemistry: predicted serotonin-like ligands

Here we predict serotonin and 3 serotonin-like ligands varying in bond orders specified by SMILES strings, bound to a malaria protein (PDB 2qeh, not shown). Alphafold ignores the differing bond orders and predicts similar conformations for all variants.

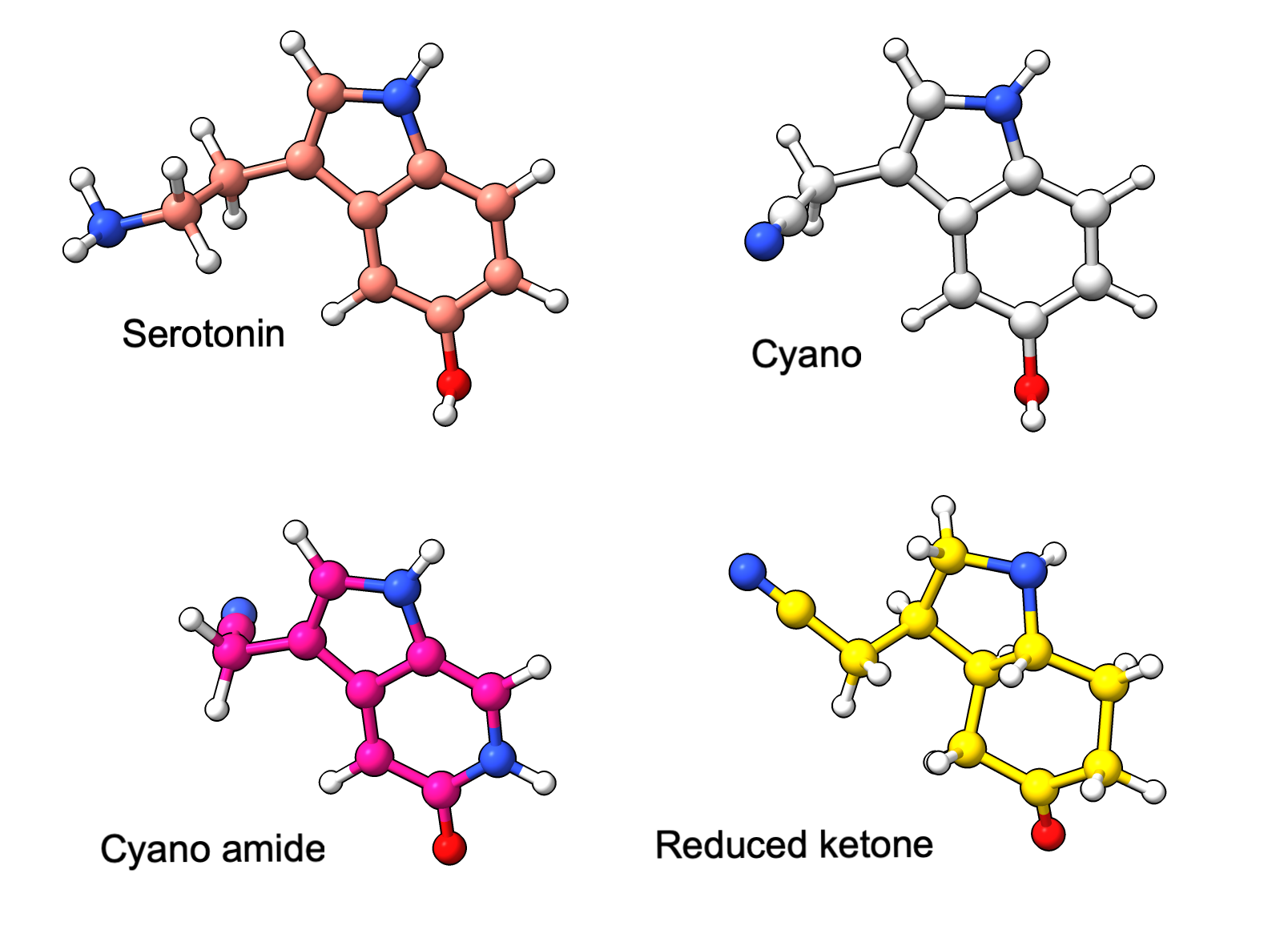

Serotonin variants. Reference conformations from SMILES.

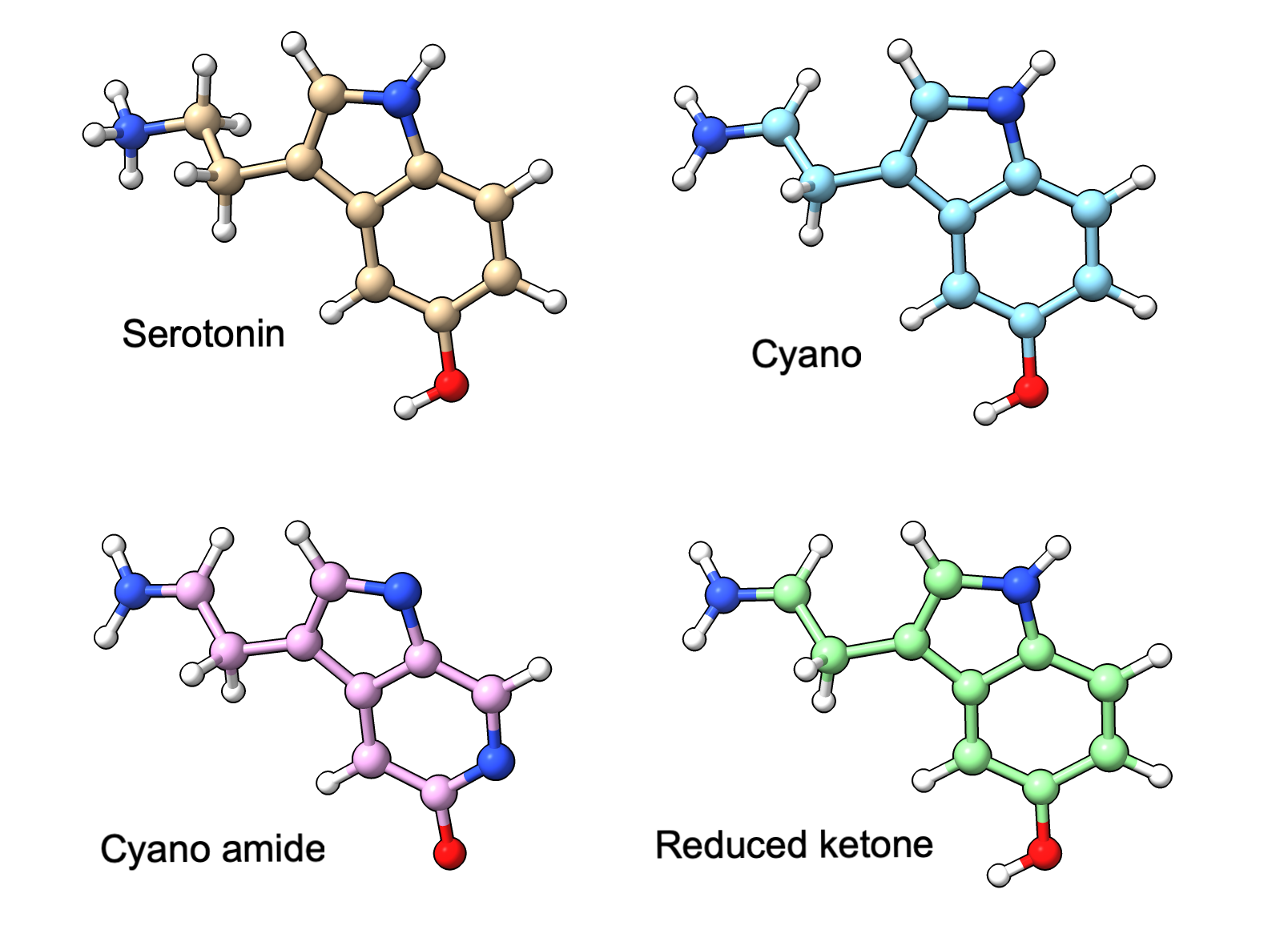

Serotonin variants predicted by AlphaFold 3 hydrogens inferred from conformations using ChimeraX.

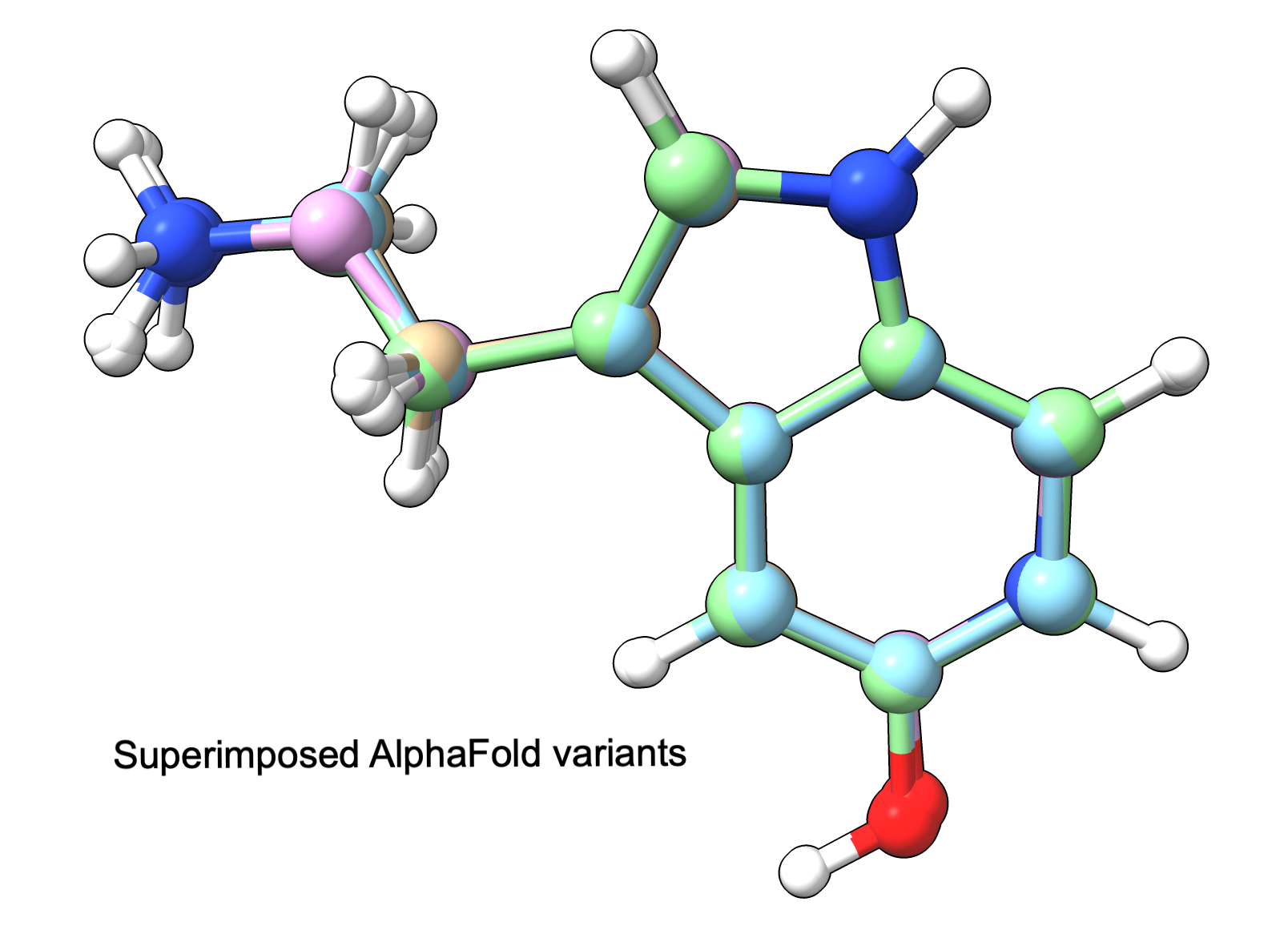

AlphaFold 3 predictions for variants all have similar conformation

Predictions with wrong chirality

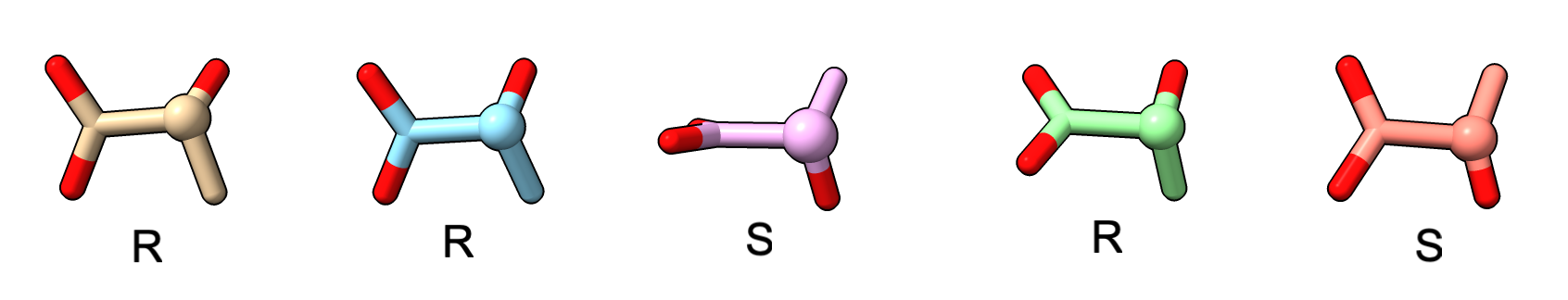

Alphafold 3 predictions frequently have the wrong chirality for ligand chiral centers. For example, here is S-lactic acid (biologically relevant form) predicted using SMILES string C[C@@H](C(=O)O)O which specifies stereochemistry. 3 of 5 of the predictions have the wrong chirality.

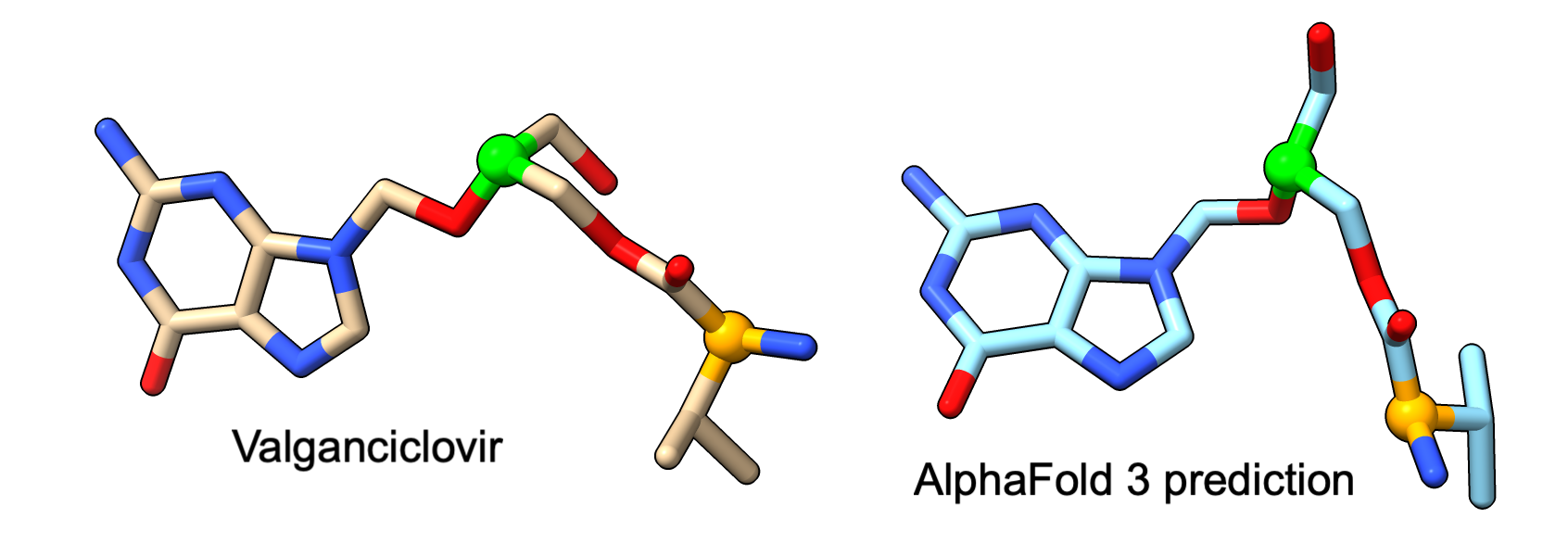

Below is another example with antiviral drug valganciclovir which has two chiral centers. AlphaFold 3 predicts one correctly (green) and one flipped (orange).

Prevalence of chemistry and chirality errors

AlphaFold 3 (Mar 2026), OpenFold 3 preview 1 (Oct 2025) and preview 2 (March 2026), and Boltz 2 (Aug 2025) all produce bad ligand chemistry and chirality in predictions for 52 antiviral drugs bound to HIV protease.

The table below shows number of ligands (atoms) with chemistry and chirality errors in predictions of 52 antiviral ligands bound to HIV protease dimer. Incorrect chemistry is assessed by adding hydrogen atoms inferred from the predicted ligand conformation using the ChimeraX addh command and comparing the hydrogens added to a reference ligand conformation.

More than half of the ligands have wrong chemistry or chirality in each of the tested programs.

Boltz steering potentials

The above summary table shows Boltz with steering potentials enabled produces significantly fewer chemistry and chirality errors. The steering potentials apply forces to the atoms during the atom diffusion step of prediction. They do not affect the earlier PairFormer stage which infers atomic interactions. We suspect that the steering potentials fix the problems too late in the process to improve binding poses and affinity predictions. They essentially fix the geometry after the ligand placement was determined without knowledge of the hydrogens and chiralities.

Potential fixes

Here are speculative ideas about how to improve the ligand prediction understanding of chemistry and chirality.

1. Retrain the ML prediction programs including explicit hydrogens on ligands.
2. Include in the training loss function a penalty for wrong chirality based on the difference in signed chiral volume (see section 2.4 of An introduction to stereochemical restraints) between prediction and reference conformer, for all ligand atoms with 4 substituents and no more than 1 hydrogen. While not all such atoms are chiral, this approach avoids the need to identify chiral centers and determine their absolute chirality (a task with many challenging edge cases).
3. Embed bond orders for ligands when computing input features.

To test whether their are difficulties in including hydrogens on ligands in structure predictions I modified OpenFold 3 preview 1. I added a line of code to add hydrogens to the SMILES strings and another line to prevent removing hydrogens later (code diff). With those two changes OpenFold predicted cyclohexane with correct hydrogens. Unsurprisingly it did not produce any better geometry for the carbon ring, flattening it in the same was as without hydrogens. Since OpenFold was not trained with hydrogens it likely knows nothing about how they affect the structure.

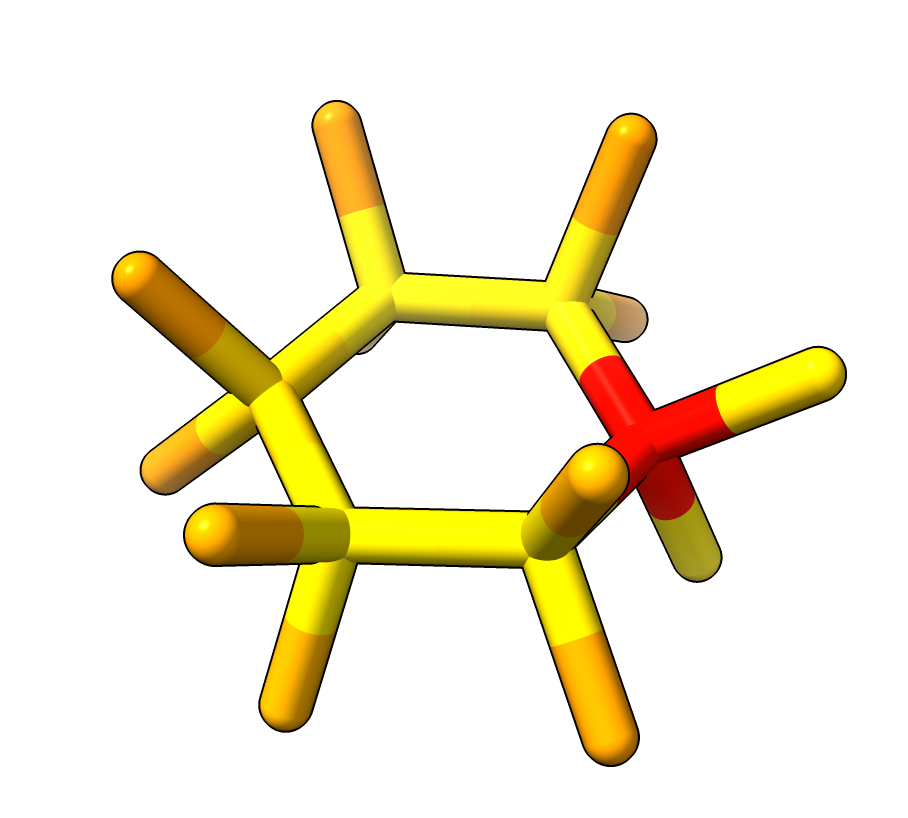

Cyclohexane predicted by OpenFold including hydrogens. Ring flattened. Colored by pLDDT.

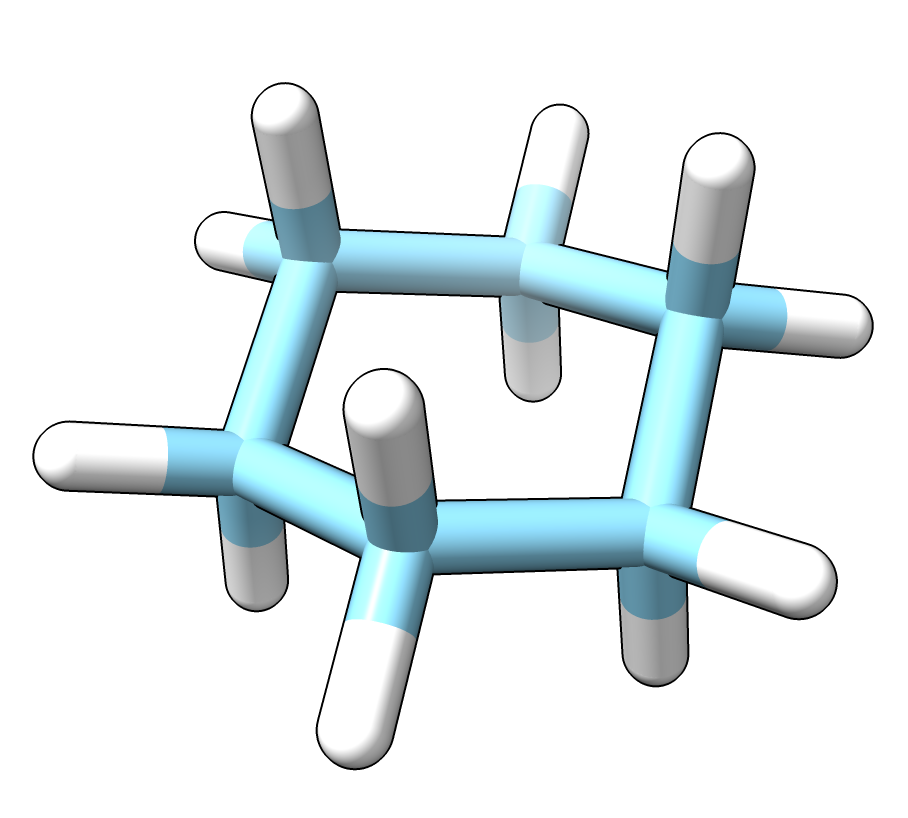

Cyclohexane from PubChem.

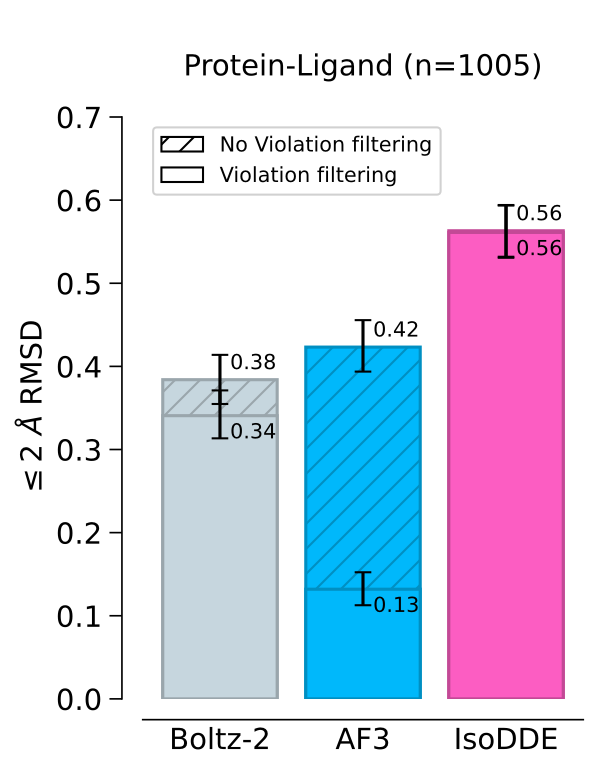

Almost all machine learning structure prediction is being pursued by companies and kept secret. They are interested in drug discovery so it seems likely they have all worked on these ligand prediction problems. Figure 5 (shown at right) from the Isomorphic Labs Drug Discovery Engine (IsoDDE) white-paper released February 10, 2026 shows AlphaFold 3 ligand binding success rate dropped from 0.42 to 0.13 if "violation filtering" was done (removing results with bad bond lengths, bond angles, wrong chiralities, clashes), while their newer IsoDDE program appears to not produce any violations. The Boltz 2 violations are relatively small (0.38 to 0.34) possibly because they enabled steering potential to fix chiralities and because their bond length/angle violation thresholds were very large. The white-paper does not give any clues how violations were reduced. The white-paper only provides benchmark results.

Chemistry and chirality errors for each ligand

Miscellaneous bugs

Incorrect bonds. Two of 52 boltz steering predictions contained bonds not present in the input. This came about because the mmCIF atomic model output written by all the programs does not contain bond information for the ligands. Therefore the bonds must be guessed based on atom positions. With Boltz steering an oxygen of a ring structure was moved 5 Angstroms away from its correct ring position. The bad bonds were in Boltz steering predictions for tipranavir, ledipasvir. We did not analyze chemistry and chirality mistakes for the ligands with incorrect bonds. The mmCIF output should contain explicit bond information for the ligands given that the programs are prone to atom steric clashes.

Incorrect atoms. Boltz writes mmCIF predictions with sodium atoms (Na) annotated as nitrogen and calcium atoms (Ca) annotated as carbon. This threw off comparisons that expected the same ligand atomic elements. I patched it in the comparison scripts. Ideally this would be fixed in Boltz code, although the open source Boltz project appears to have ended with the development team starting a company.

Chirality definition. Predicting incorrect chemistry leads to different placement and numbers of hydrogen atoms. That can change the ordering of the 4 substituents of a chiral center making it appear that the chirality changed when in fact the problem is a change in hydrogens. To avoid flagging those problems as chirality errors I measure chirality simply by the placement of the 4 neighbor atoms (ordered by atom name) when comparing reference ligand conformations to predicted conformations.

SMILES to 3d fails. To produce reference conformations for the 52 antiviral smiles strings I used the ChimeraX SMILES to 3d service hosted by the National Cancer Institute. This can fail to produce a 3D conformation, and did fail for the ligand voxilaprevir. I got a reference 3D conformation for voxilaprevir from PubChem. AlphaFold, OpenFold and Boltz all use RDKit to get 3D conformations from SMILES strings to use in the input features. All will use "random" coordinates from RDKit if it fails to produce good geometry. That can fail also (not sure how) in which case Boltz and OpenFold fail to predict, but AlphaFold 3 sets all atom coordinates to 0. I believe the only way the input features indicate ligand chemistry and chirality is via the input coordinates. So if the coordinate calculation is bad, this will obviously prevent the programs from producing the desired chemistry and chirality.

Data files

The results shown above can be downloaded: benzene.zip, serotonin.zip, lactic_acid.zip, antivirals.zip. A ChimeraX command script ligchem.py defining ChimeraX commands ligdiff and matchnames was used to look for chemistry and chirality differences between reference and predicted ligands.
