Tool: Animations

* in progress; smooth transitions have not been implemented for many aspects of a scene *

Animations is a timeline-based graphical interface for creating movies from a series of scenes and other actions. The scene mode of the GUI is documented in this page. See also: making images, making movies

Animations can be started from the Depiction section of the Tools menu and manipulated like other panels (more...).

Placing Scenes and Actions on the Timeline
Playback and Scrubber
Transitions between Scenes
Recording a Movie
Settings (Preferences)

[back to top: Animations]

Placing Scenes and Actions on the Timeline

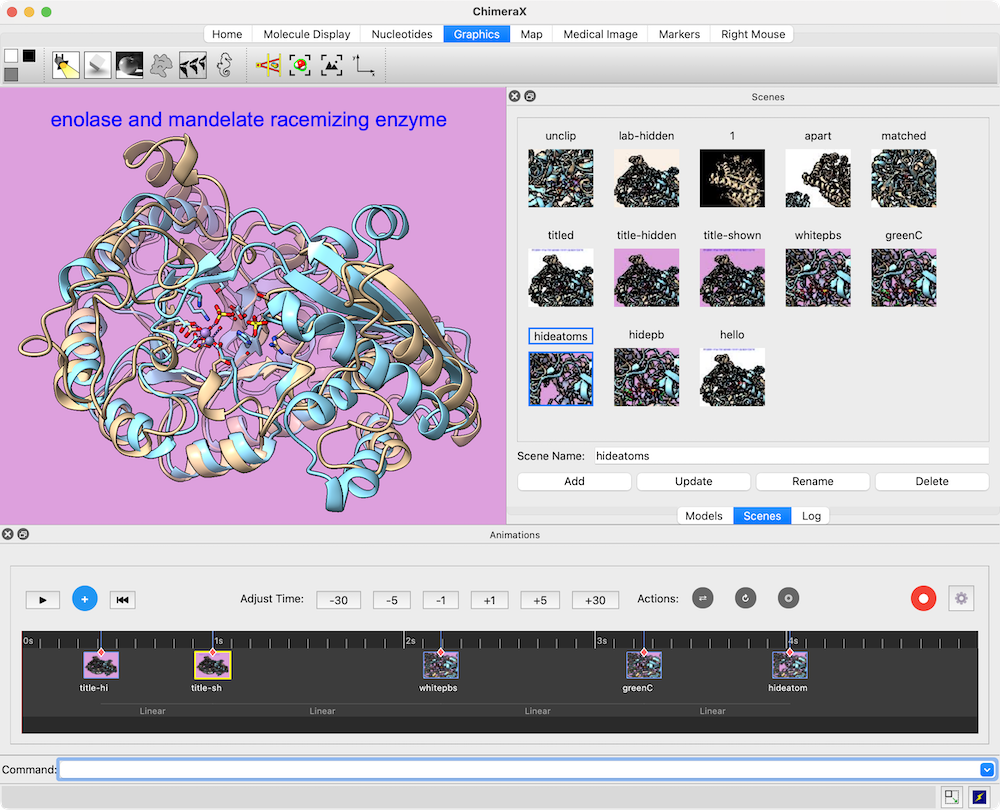

An existing scene can be placed on the timeline by dragging and droppping a thumbnail from the Scenes tool. A new scene corresponding to the current ChimeraX contents can be created and added to the timeline by clicking the plus-sign icon (white on a blue circle). The scenes can be dragged horizontally to different positions on the timeline.

Adjust Time: Clicking the negative and positive numbers allows adjusting the length of the timeline by subtracting and adding seconds.

Actions: the three icons on gray circles represent (from left to right) represent rocking, rolling, and precession. Each type of action can be placed on the timeline any number of times by clicking and dragging the respective icon, and its start and stop times adjusted by dragging the left and right ends of the action bar horizontally on the timeline. The context menu for an action bar on the timeline includes corresponding options:

• for Rock:
  • Delete 'Rock' Segment
  • Axis (X/Y/Z)
  • Angle (15/30/45/60/90/120/180°)
  • Count (1/2/3/4/5)
• for Roll:
  • Delete 'Roll' Segment
  • Axis (X/Y/Z)
  • Angle (15/30/45/60/90/120/180/360°) – total rotation
  • Count (1/2/3/4/5)
• for Precess:
  • Delete 'Precess' Segment
  • Axis (X/Y/Z)
  • Count (1/2/3/4/5) – number of cycles
  • Precession Tilt (5/10/15/20/30/45°)

A scene or action can be removed from the timeline by clicking its representation on the timeline and pressing the delete key. A scene can also be deleted by using the thumbnail context menu.

[back to top: Animations]

Playback and Scrubber

The scrubber is the red vertical line indicating position on the timeline. Clicking the timeline places the scrubber, and dragging the the scrubber horizontally shows the corresponding segment of the animation as per the speed and direction of dragging. Clicking the play button ▶ plays the animation from the current scrubber position to the end, at the speed indicated by the timeline length in seconds. During playback, a pause button ⏸ is shown and can be clicked to halt playback in progress. Clicking the rewind button ⏮ places the scrubber at the beginning of the timeline.

[back to top: Animations]

Transitions between Scenes

The context menu for a scene thumbnail on the timeline includes:

• Delete [name-of-scene] from Timeline
• Transition Type – how to spread out any gradual changes over the interval between the scene and the one before it. Transition type does not affect which aspects of a scene change gradually, only how the rate of change may vary. Transition types are indicated on the timeline with line shapes and labels below the scene thumbnails.
  • Linear – constant rate of change
  • Ease In (Sine)
  • Ease Out (Sine)
  • Ease In-Out (Sine)
  • Ease In (Quad)
  • Ease Out (Quad)
  • Ease In-Out (Quad)
  • Ease In (Cubic)
  • Ease Out (Cubic)
  • Ease In-Out (Cubic)
• Fade Model (checked or unchecked)

[back to top: Animations]

Recording a Movie

Clicking the ◉ button to record a movie opens a dialog for specifying the movie resolution and output file type, filename, and location. Clicking Save initiates recording with the indicated settings, and the recording button above the timeline changes to orange ◉ to indicate a recording in progress. Clicking the orange button halts the recording and assembles any already-recorded image frames into the specified output file. In general, the scrubber will advance more slowly during recording than during playback because rendering the images takes time.

[back to top: Animations]

Settings (Preferences)

Clicking the gear button opens the Animations Preferences, with settings:

• Animation tool mode – whether to show the Scene Mode GUI for Animations (default), which is documented in this page, or the more complex Keyframe Mode (not yet documented)
• Default recording resolution – what resolution (image dimensions) to show initially in the movie output dialog when it is invoked by clicking the ◉ button to record; the resolution can still be changed in that dialog, however, before recording is initiated

Buttons at the bottom of the dialog:

• Save – save the current settings
• Reset – replace the current settings with the initial (“factory”) defaults
• Restore – restore values that were saved previously
• Help – show documentation
