Showing a Segmentation of Mouse Brain Electron Microscopy

Tom Goddard
June 23, 2020

The largest brain region imaged by electron microscopy to date described here was segmented by the authors using machine learning and 4000 hours of human curation.

   Dense connectomic reconstruction in layer 4 of the somatosensory cortex.
   Motta A, Berning M, Boergens KM, Staffler B, Beining M, Loomba S, Hennig P, Wissler H, Helmstaedter M.
   Science. 2019 Nov 29;366(6469):eaay3134. doi: 10.1126/science.aay3134. Epub 2019 Oct 24.

Here we try to look at the segmentation using ChimeraX. Admirably, the authors made this large data set available.

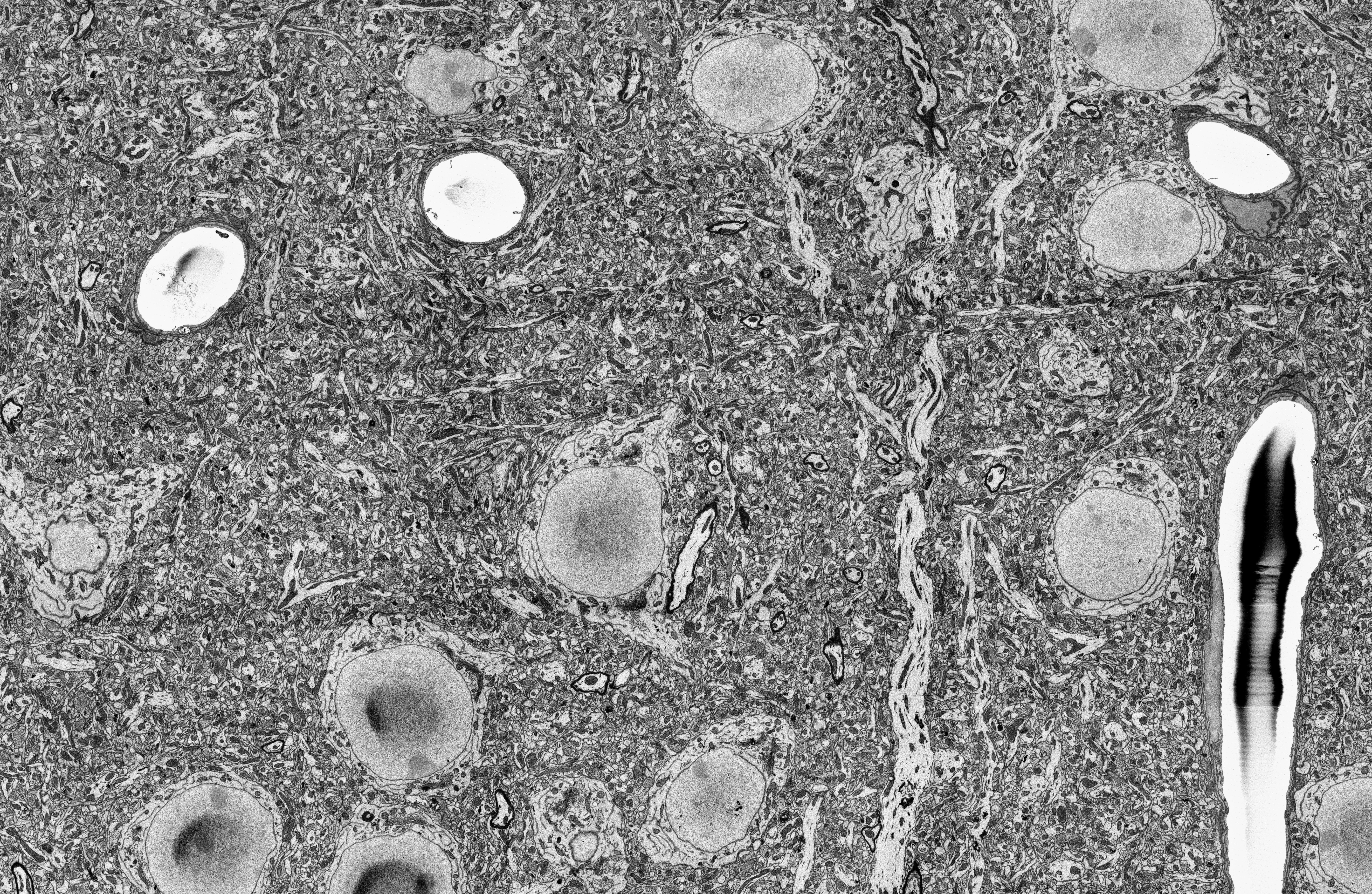

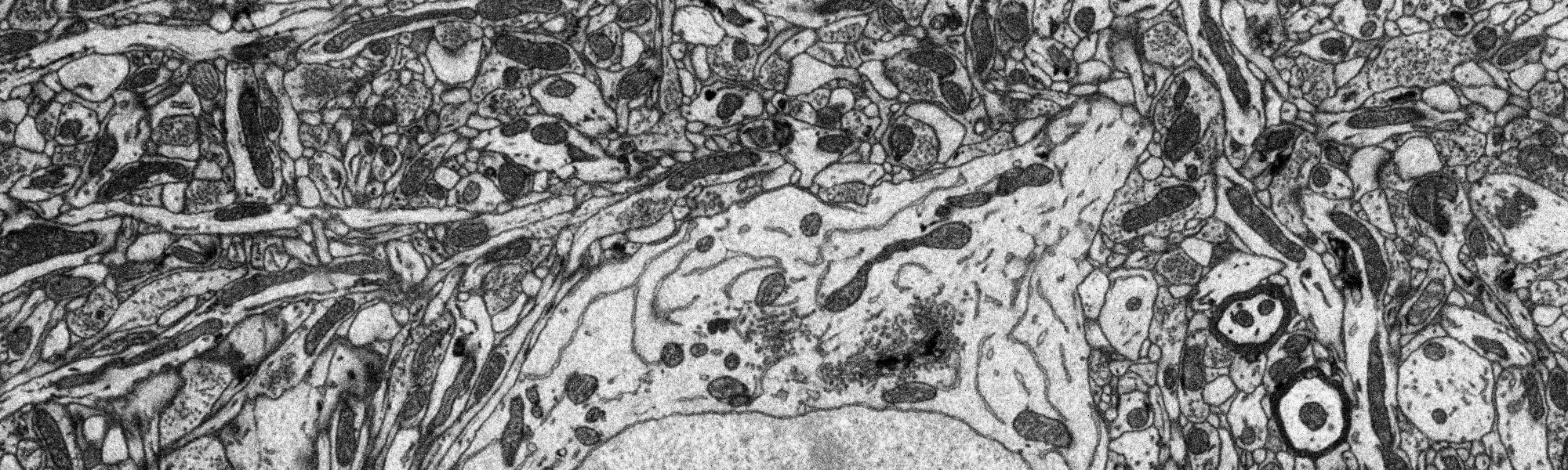

Figure 1: Small part (1/4 width, 1/10 height) of single plane of EM data. Full plane.

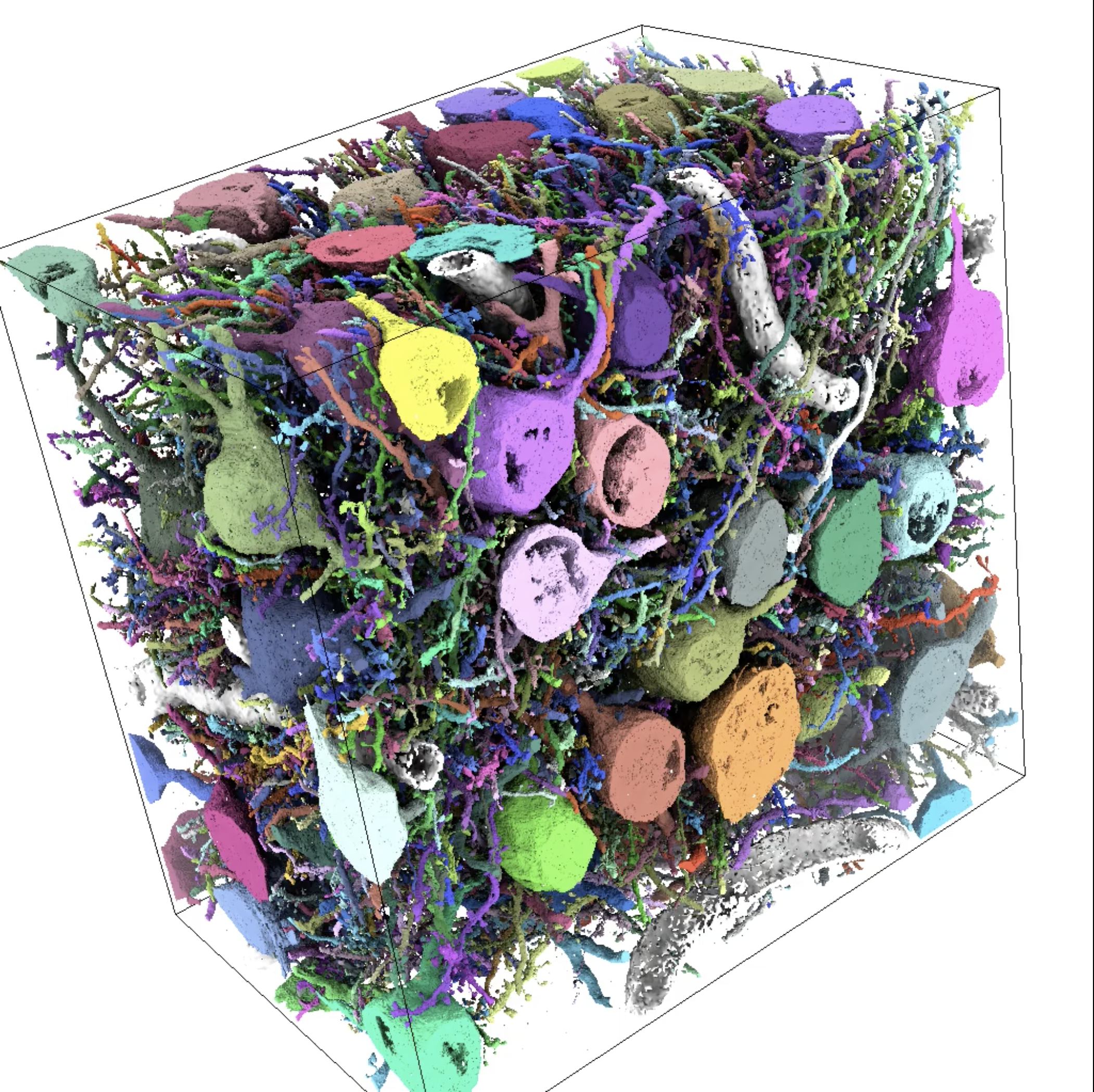

Surfaces of 96 neurons with soma at least partially in volume (video rotating and showing each neuron).

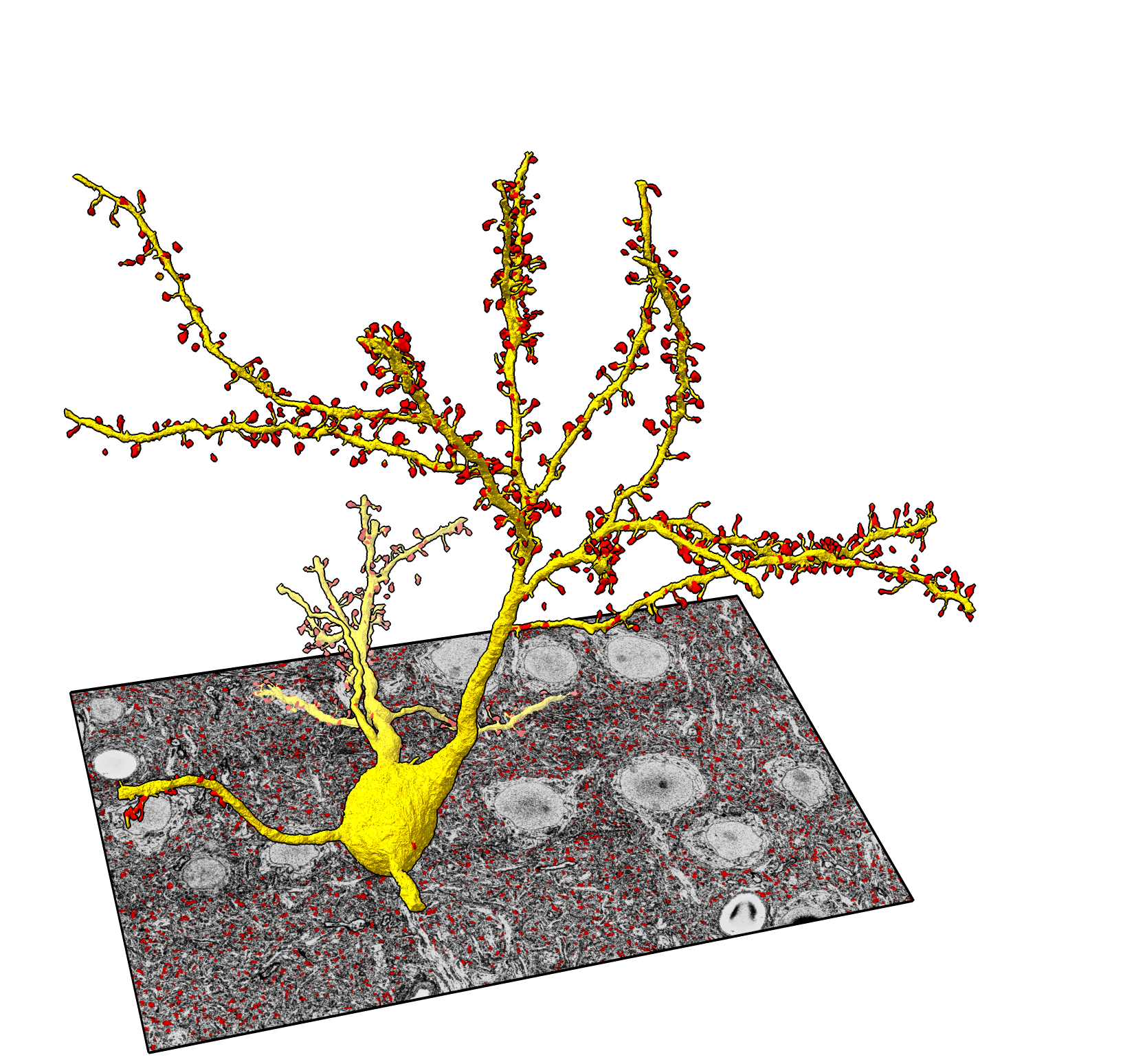

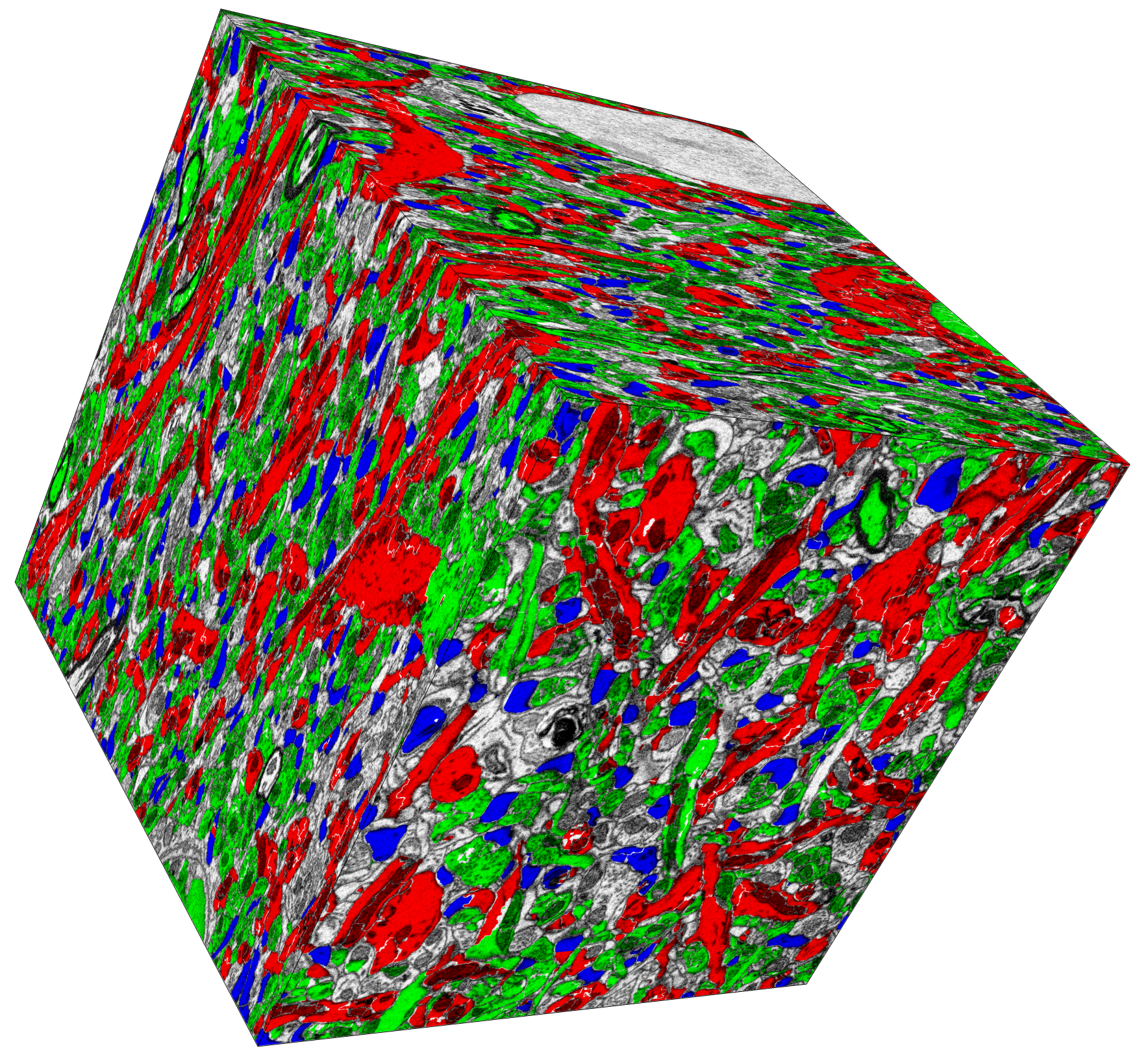

 Surface of one neuron (yellow) with spineheads (red) (video slicing). Small region (1/200) of volume (11x11x28 um) with axons green, dendrites red, and spineheads blue (video slicing).

 open seg_step884.cmap
 seg surf #1 each neuron
 light soft


open seg_step884.cmap
seg surf #1 where neuron=1 color yellow
seg color #1 red surf #2 by spinehead


  open image_x1y1z1.cmap
  open seg_x1y1z1.cmap
  hide #2
  seg color #2 red map #1 by dendrite
  seg color #2 lime map #1 by axon
  seg color #2 blue map #1 by spinehead
  volume #1 level 95,0 level 120,0.9 level 234,1

Figure 2: Displaying segmentation surfaces and coloring EM image data using the segmentation command.
Example ChimeraX commands use the data files provided below.

Example image and segmentation files

Here are image and segmentation files assembled from the a above publications for visualization in ChimeraX.

I am not providing the full data at full resolution because I do not have the resources to host hundreds of Gbytes for download. Contact me if you have a strong need for the full resolution files, or download the data from the author's web site and recreate the files with the Python scripts I provide below.

Movie making command scripts

Here are ChimeraX command scripts that make movies similar to those shown in Figure 2. I try all these steps interactively, often using mouse modes and volume viewer panel and toolbar buttons, and then I make the command script by copying commands from the Log that were created by those user interfaces.

Data size

The imaging covers about a 0.1 millimeter cube (0.075 mm x 0.112 mm x 0.096 mm) with voxel size 11.24 nm x 11.24 nm x 28 nm. This is about one hundredth the diameter of a whole mouse brain (1 cm) so about 1 millionth of the brain volume. It contains only parts of 96 neuron cell bodies (soma) which agrees with estimates of 75 million neurons in the mouse brain. It is not large enough to contain any complete neurons.

The image data has 6690 x 9945 x 3420 voxels, about 200 Gbytes (one byte per voxel). It is split into 216 HDF5 files each 10243 in size. The segmentation is similarly split into 216 HDF5 files that use compression, total size about 28 Gbytes. The segmentation files have a 4-byte integer region id for each voxel so uncompressed would be 4 times the size of the image data or 800 Gbytes.

Segmentation properties

The segmentation assigns id numbers to about 15 million regions (done via a machine learning algorithm). Then individual axons, dendrites, neurons with soma (central cell body) within the volume, spineheads, pre-synapses and post-synapses are given separate id numbers and the regions that belong to each are specified in additional HDF5 files.

Here are the counts of each object type:

  open seg_x1y1z1.cmap
  seg color #1

  open image_x1y1z1.cmap
  volume #1 level 70,0.015 level 146,0.8 level 234,1

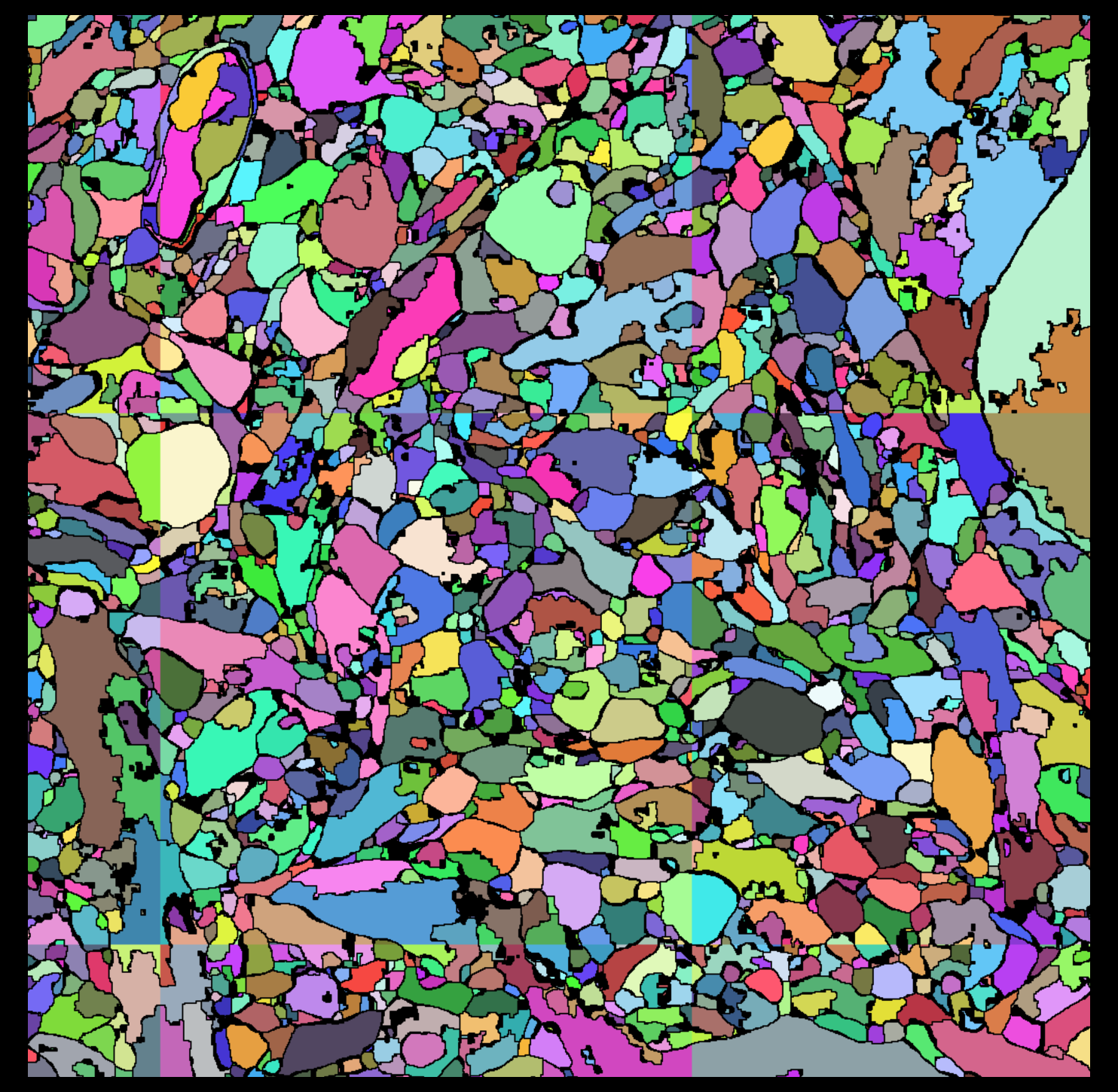

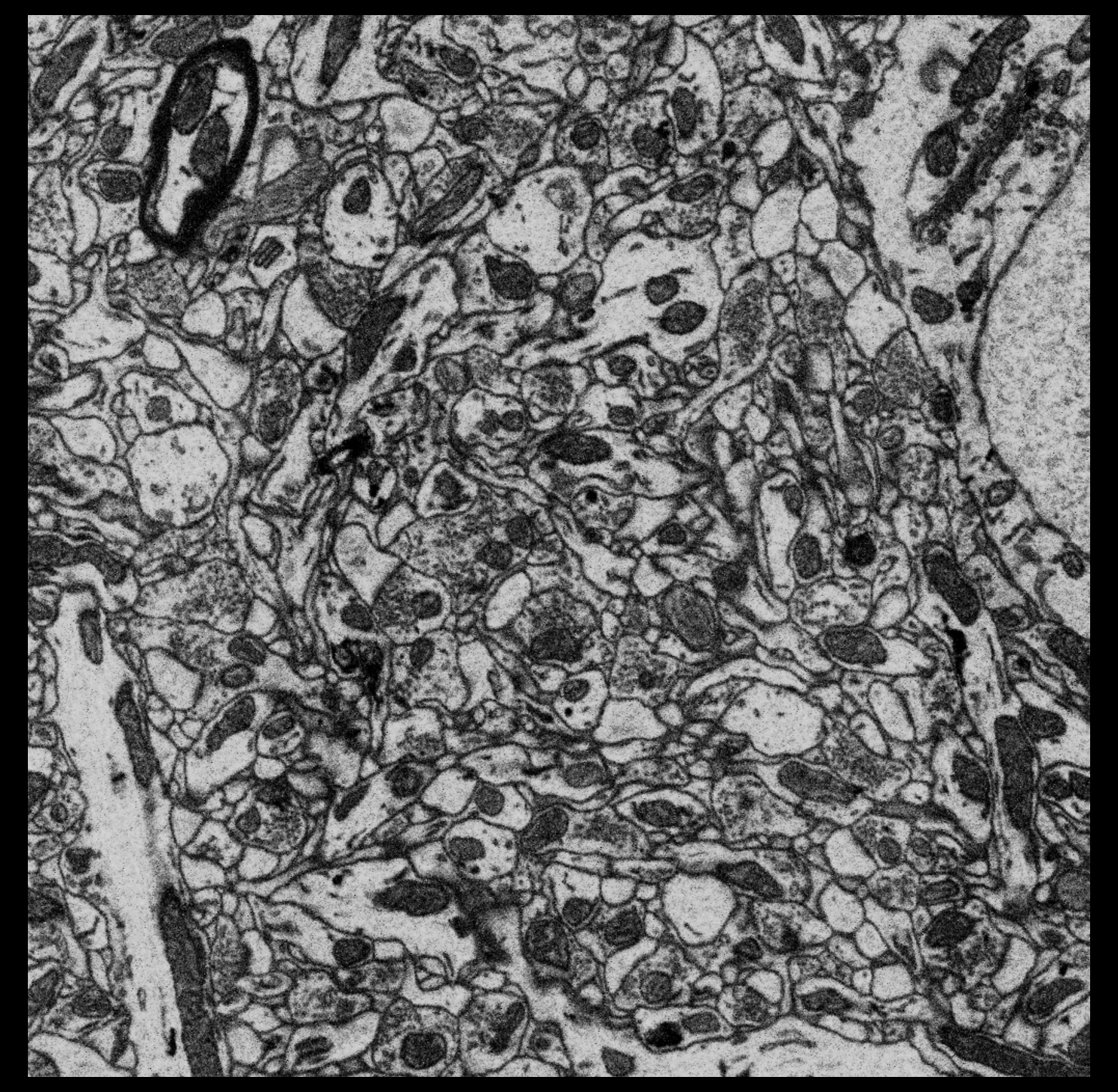

Figure 3: Segmentation regions for a slice of one 10243 chunk. There are many incorrect boundaries in the segmentation.

Simplifying data file organization

In order to be able to visualize the data I first reorganized the custom partitioning into files used by the authors into a single file for the image data and single file for the segmentation data so that no specialized code is needed to view it.

Single image data file. The image data was in 216 chunks in separate files so I put it in one file. Using 216 1 Gbyte files was no doubt easier for analysis scripts to handle. But for visualization ChimeraX can work easily with a single file. The single file I created is also HDF5 format although I used suffix ".cmap" (Chimera map) and this single file contains versions of the data subsampled at many coarser resolutions so that it can quickly display the full data, or also easily read small chunks to show at full resolution. I used a custom script (combine.py) to load the 216 chunk files and copy them to a single hdf5 file. That copy did not have the subsamples, so I opened that HDF5 file in ChimeraX and saved as a ".cmap" file. This did not require a lot of memory (done on my normal desktop Mac with 32 Gbytes) because ChimeraX reads only part of the data at a time when copying. Still a 200 Gbyte file is inconvenient, so I also made subsampled versions at step 4,4,2 (along x,y,z) and 8,8,4 for sharing with others.

Single segmentation file. I combined the chunked 216 segmentation files in the same way. Those files used a slow compression method ("deflate" used by zip, 200 Mbytes/sec) which made the conversion a slow process (several hours). The file I created uses a more modern compression method called blosc:lz4hc that can decompress at speeds (5-10 Gbytes/sec) faster than SSD drives can read and is standard in HDF5 so add no additional requirements to use. The single segmentation files is 28 Gbytes and includes subsampled copies of the data for fast access. Compression factor is about 30.

Object ids in segmentation file. The segmented objects (axons, dendrites, spineheads, presyanpses, postsynapses, neurons) have their own id numbers. The authors list which region ids correspond to which axon id, dendrite id, ... in several additional files. I included all these in the single segmentation file each as an integer array of length equal to the total number of regions (15030572). The axon array lists the axon id for each of the 15 million regions. Regions that are not axons have axon id 0. These attributes remap region id numbers to axon id numbers, dendrite id numbers, spinehead id numbers, ... and can be directly used with the ChimeraX segmentation command. HDF5 files contain an arbitrary directory structure with any number of arrays so these attribute arrays are included under /attributes in the segmentation file. The attributes are created with the a custom script (object_ids.py) from the author data files and then added to the segmentation file with the hdf5 h5copy utility as shown below.

Scripts used to simplify files

Here are the Python 3 scripts I wrote to convert the author's data files into a single image data and single segmentation file for visualization.

To convert the authors segmentation hdf5 files to cmap format I used the following ChimeraX save command options to do the compression.

  open x1y1z1.hdf5
  save seg_x1y1z1.cmap region all compressMethod blosc:lz4hc compressShuffle false
