CyBrowser: HTML browser app for Cytoscape

CyBrowser: HTML browser app for Cytoscape

Description

CyBrowser is a Cytoscape 3 app that provides an HTML/Javascript browser dialog or results panel. The app is intended to be used primarily as an adjunct for other apps, but may also be used directly by users. CyBrowser has two unique features that provide for integration with Cytoscape:

Special cycmd links that will execute the rest of the URL as a Cytoscape command. For example:
```
 <a href="cycmd:view fit content">Click to fit the content</a>
```
will execute the Cytoscape "view fit content" command when the user clicks on the link.
Two Javascript methods that allow code running in the context of the web page to execute Cytoscape commands and (optionally) get the results back.
- cybrowser.executeCyCommand(command) will execute the string specified by the command argument. For example:
```
<input type="button" onclick="cybrowser.executeCyCommand('view fit content');" value="Fit content"/>
```
  will execute the Cytoscape "view fit content" command when the user clicks on the button.
- cybrowser.executeCyCommandWithResults(command, methodName) will execute the string specified by the command argument, and call the Javascript method specified by the methodName parameter. After the command has completed in Cytoscape, the methodName method will be called with a single argument, which is the string representation of the returned value from the command. The calling web page must supply the method specified by methodName. For example, to get a list of all of the current networks:
```
<html>
	<head>
	<script>
function getResults(results) {
	alert("Networks: "+results);
}
	</script>
	</head>
	<body>
		<h1>Test</h1>
		<input type="button" onclick="cybrowser.executeCyCommandWithResults('network list', 'getResults');" value="List networks"/>
	</body>
</html>
```
  After the execution of the network list command, the getResults method will be called with the actual results from the command. In this case, we've just used the alert method to display those results, but more sophisticated applications could write the results into the HTML or process it in some manner, including calling additional Cytoscape commands. While currently, the return values are limited to strings, in the future, this will be expanded to also support JSON representations of Cytoscape command results.

Also note that the UserAgent string returned by CyBrowser includes the string CyBrowser/version where version is the App version. This allows web sites to determine if CyBrowser is the user agent. The current user agent is:

User agent = Mozilla/5.0 (Linux x86_64) AppleWebKit/602.1 (KHTML, like Gecko) JavaFX/8.0 Safari/602.1 CyBrowser/0.5.0

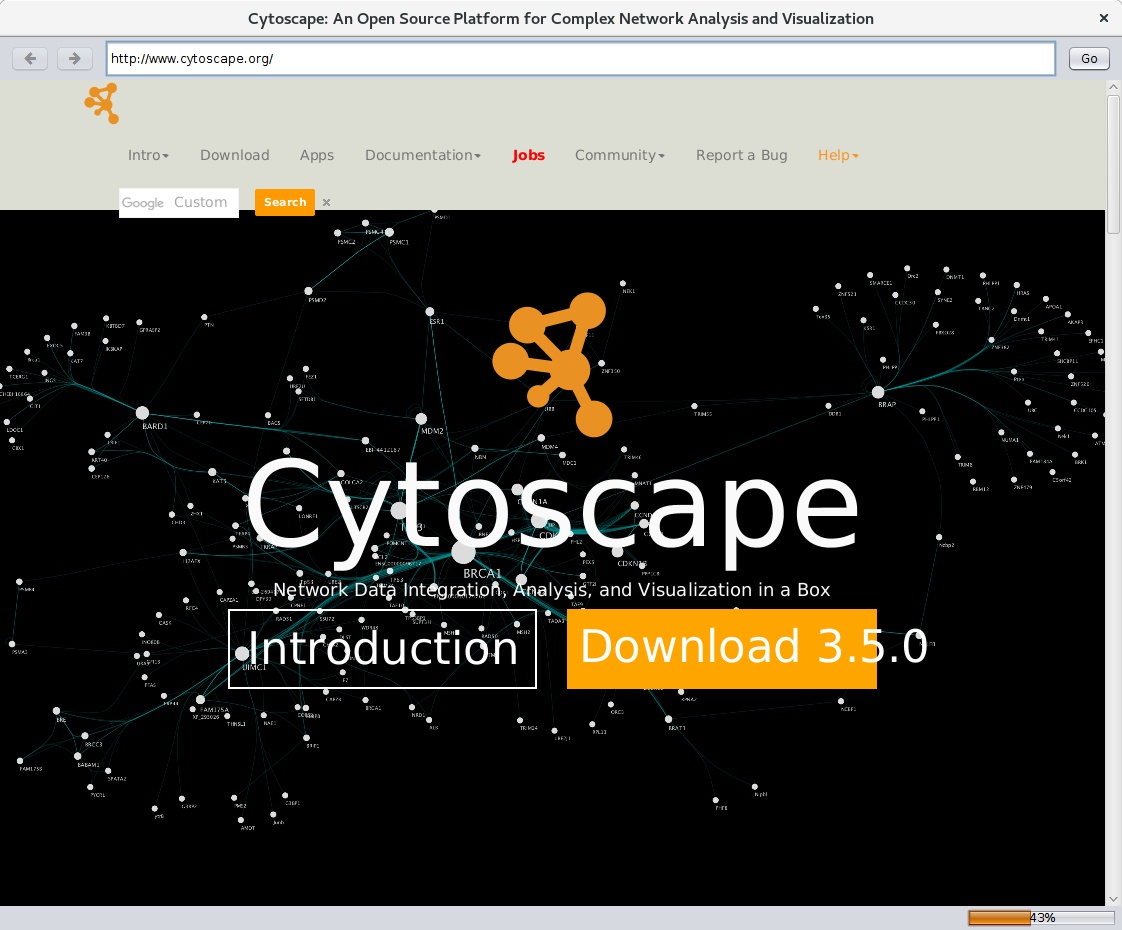

Figure 1: CyBrowser's dialog showing the Cytoscape web site

User interface

CyBrowser provides a single interface for users and three commands that may be used for scripting or by apps through the Cytoscape command mechanism. The user may initiate a CyBrowser dialog by using the Appsâ†’CyBrowserâ†’Launch Cytoscape web browser menu. This will bring up a simple text box that the user can use to enter a URL. This will bring up the browser as shown in Figure 1. The default browser has very simple controls:

a text box to enter a new URL,
forward and backward arrows to move through the history,
and a Go button.

Additional functions are available through context (right-click) menu items.

Commands

In addition to the simple browser interface provided to the user, CyBrowser also supports three commands to control browser windows and utility command to get the version of the app. The commands currently supported are:

cybrowser dialog
cybrowser show
cybrowser hide
cybrowser version: This is a simple command that returns the version of the app as a string.
